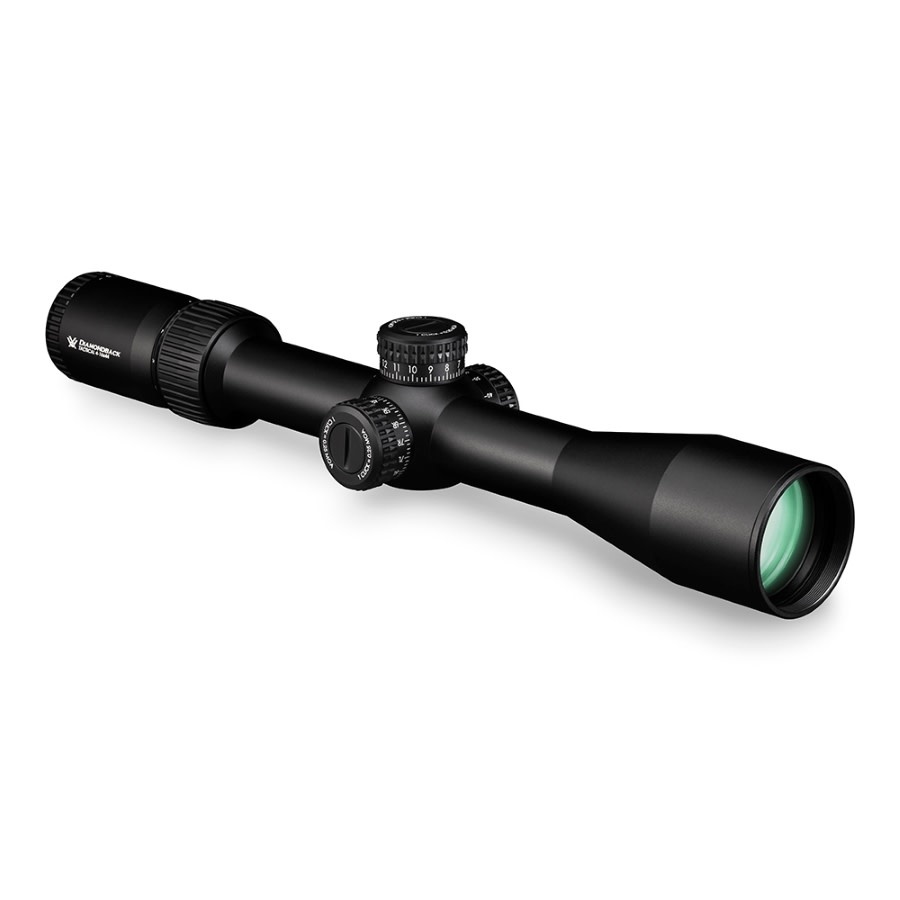

VORTEX DIAMONDBACK TACTICAL 4-16X44MM FFP EBR-2C RIFLESCOPE

The Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.

SKU	VT-DBK-10026
Magnification	4 – 16
Objective Lens Diameter	44 mm
Eye Relief	3.8 inches
Field of View	26.9 – 6.7 feet/100 yards
Tube Size	30 mm
Turret Style	Exposed Tactical
Adjustment Graduation	1/4 MOA
Travel per Rotation	15 MOA
Max Elevation Adjustment	85 MOA
Max Windage Adjustment	85 MOA
Parallax Setting	20 yards to infinity
Length	14.06 inches
Weight	23.1 ounces

• Lens covers
• Lens cloth
• Sunshade

Lengths
L1	L2	L3	L4	L5	L6
14.06	2.24	2.7	6.43	3.83	3.77

Heights
H1	H2
2.01	1.73

Dimensions measured in inches.

OPTICAL FEATURES
XD Lens Elements	Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Lenses	Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low light performance
First Focal Plane	Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

CONSTRUCTION FEATURES
Tube Size	30 mm diameter provides maximed internal adjustment and strength.
Nitrogen Gas Purged	Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions.
Aircraft-Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof	Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof	Rugged construction withstands recoil and impact.
Hard Anodized Finish	Highly durable low-glare matte finish helps camouflage the shooter's position.
Precision-Glide Erector System	Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Exposed Tactical Turrets	The Diamondback Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick.

INTERNAL MECHANISM DESIGN FEATURES
Precision-Glide Erector System	Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Precision-Force Spring System	Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment

CONVENIENCE FEATURES
Fast Focus Eyepiece	Allows quick and easy reticle focusing.
Magnification Rib	The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
