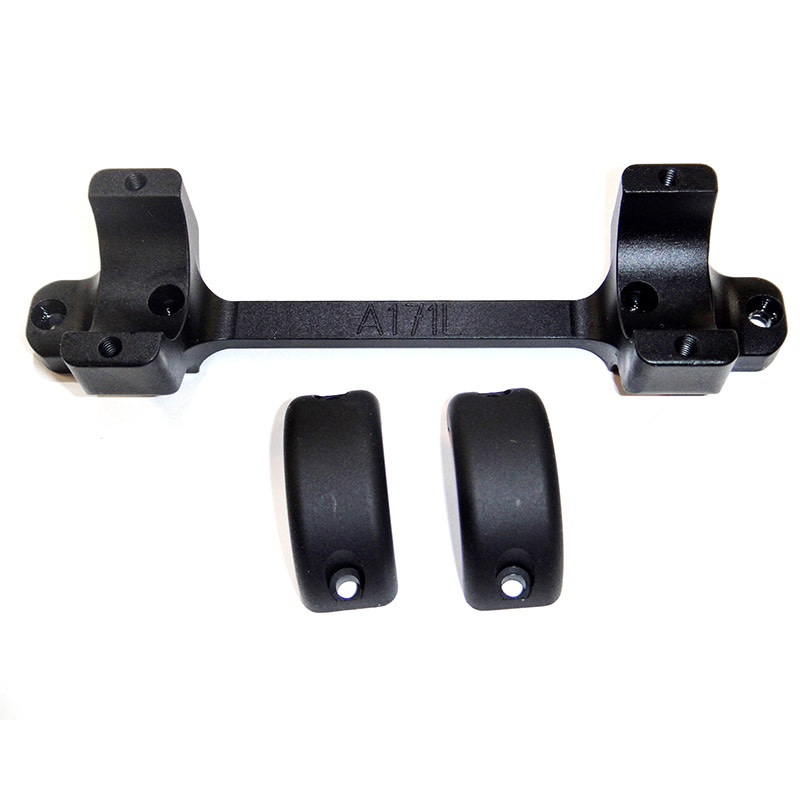

Savage Round Receiver ( 2004 and newer) (Model 10,11,12,14,16,110,111,112,114,116,212,220):
Mount fits both left and right hand firearms.
MOA mounts fit only one way right handed. If left handed call to special order.
Receiver is rounded on front and back of receiver where mounts attach.
MOA mounts are tapered down on front for long range shooting. Height will be about .03" lower on front ring than a standard mount. ***MOA mounts fit only one way right handed. If left handed call to special order.***
Base screws are 6-48 X 1/4" long and ring screws are 6-40 X 5/8" long. Both screws use a 7/64" Allen wrench.
****All of the Timberline and Ultralite models have larger 8-40 base screws. Some of the Stealth models and .338 Lapua receivers have been modified at the factory and have larger base screws.
Short action - Outside to outside of rings is 4.36". Standard rings are .63" wide and have 2 ring screws per ring. Tactical rings are .80" wide and have 4 screws per ring. 4 Hole to hole spacing dimensions are .86", 3.94", .86". Height of mounts from top of receiver to centerline of scope tube is - low .92", medium 1.05", and high 1.17".
Long action - Outside to outside of rings is 5.06". ( ***Offset ring mounts with OS for offset on end of part number are 4.42" outside to outside of rings for shorter tube scopes.*** Part 18200OS medium and 12200OS high ) Standard rings are .63" wide and have 2 ring screws per ring. Tactical rings are .80" wide and have 4 screws per ring. 4 Hole to hole spacing dimensions are .86", 4.63", .86". Height of mounts from top of receiver to centerline of scope tube is - low .92", medium 1.05", and high 1.17".
