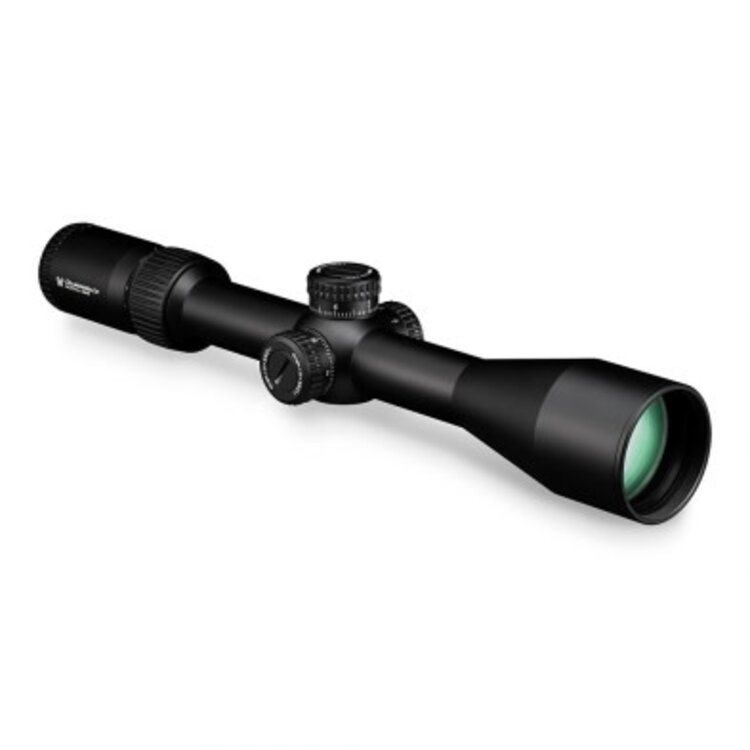

VORTEX DIAMONDBACK TACTICAL 6-24X50MM DBK-10029

Details

DIAMONDBACK TACTICAL 6–24X50 FFP RIFLESCOPE EBR-2C MRAD

VT-DBK-10029

Vortex presents affordable first focal plane (FFP) riflescopes. The first focal plane reticle, a feature ordinarily reserved for 4-figure-priced optics, allows shooters to use the information-packed EBR-2C reticles for ranging, holdovers or windage corrections on any magnification. Housed inside its durable, one-piece aluminum tube is a 4x optical system delivering excellent edge-to-edge clarity and sharp resolution. Exposed elevation and windage turrets are low profile enough to stay out of the way in packing situations, but offer the quickness, ease and precision of dialing accurate shots at distance. A side adjustable parallax gives shooters peace of mind by removing parallax error from the equation from 10 yards to infinity.

Dual use for hunting and tactical shooting.

SKU	VT-DBK-10029
Magnification	6 – 24
Objective Lens Diameter	50 mm
Eye Relief	3.9 inches
Field of View	18.0 – 4.5 feet/100 yards
Tube Size	30 mm
Turret Style	Exposed Tactical
Adjustment Graduation	0.1 mrad
Travel per Rotation	6 mrad
Max Elevation Adjustment	19 mrad
Max Windage Adjustment	19 mrad
Parallax Setting	10 yards to infinity
Length	14.28 inches
Weight	24.6 ounces

Lens covers
Lens cloth
Sunshade

Lengths
L1	L2	L3	L4	L5	L6
14.28	2.30	2.70	6.56	3.98	3.77

Heights
H1	H2
2.25	1.73

Dimensions measured in inches.

OPTICAL FEATURES
XD Lens Elements	Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Lenses	Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low light performance
First Focal Plane	Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

CONSTRUCTION FEATURES
Tube Size	30 mm diameter provides maximed internal adjustment and strength.
Nitrogen Gas Purged	Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions.
Aircraft-Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof	Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof	Rugged construction withstands recoil and impact.
Hard Anodized Finish	Highly durable low-glare matte finish helps camouflage the shooter's position.
Precision-Glide Erector System	Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Exposed Tactical Turrets	The Diamondback Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick.

INTERNAL MECHANISM DESIGN FEATURES
Precision-Glide Erector System	Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Precision-Force Spring System	Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment

CONVENIENCE FEATURES
Fast Focus Eyepiece	Allows quick and easy reticle focusing.
Magnification Rib	The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
